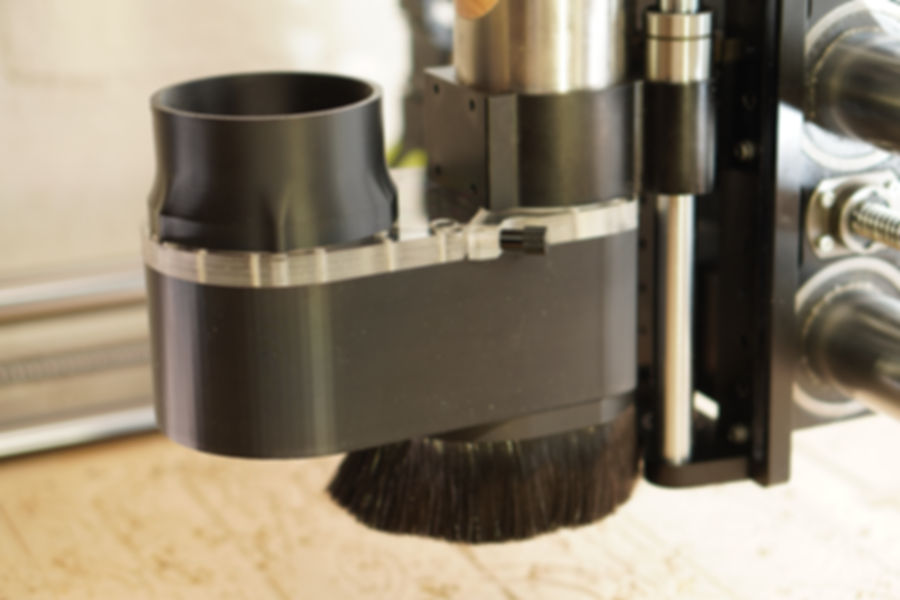

Nighthawk dust boot for 80mm spindle with 4in dust collection. Will work on the onefinity with the new Z-20 mount and most other CNC machines.

** If you have the Elite foreman with the 80mm mount from Onefinity at this time if you use our thumbscrew it can hit the right front foot. The allen key screw that gets sent with your boot will still work.

****Important****
As some spindles are slightly different than others before you buy this dustboot you need to measure the distance from your collet to the bottom of your spindle (see attached picture for measurement) to determine if you need the 2.5 inch or 3 inch boot. If your collet sits 2.5 inches from the bottom you need the 2.5-inch bottom (the brushes will then hang past your bit) if your collet sits 3 inches from the bottom of the spindle you need the 3-inch boot. (The brushes will then hang past your bit)
If you are confused don't hesitate to send us a message and we can help you figure out what size you need.

NEW MATERIAL!! All dust boot tops are now made from Lexan. This material is very hard to break. This material is also easy to scratch, we do our best to keep it free of scratches however your top may come with a few slight scratches.

Here is a video of how the Nighthawk attaches to the spindle
https://www.youtube.com/watch?v=6e7BIYl6ozU&t=3s

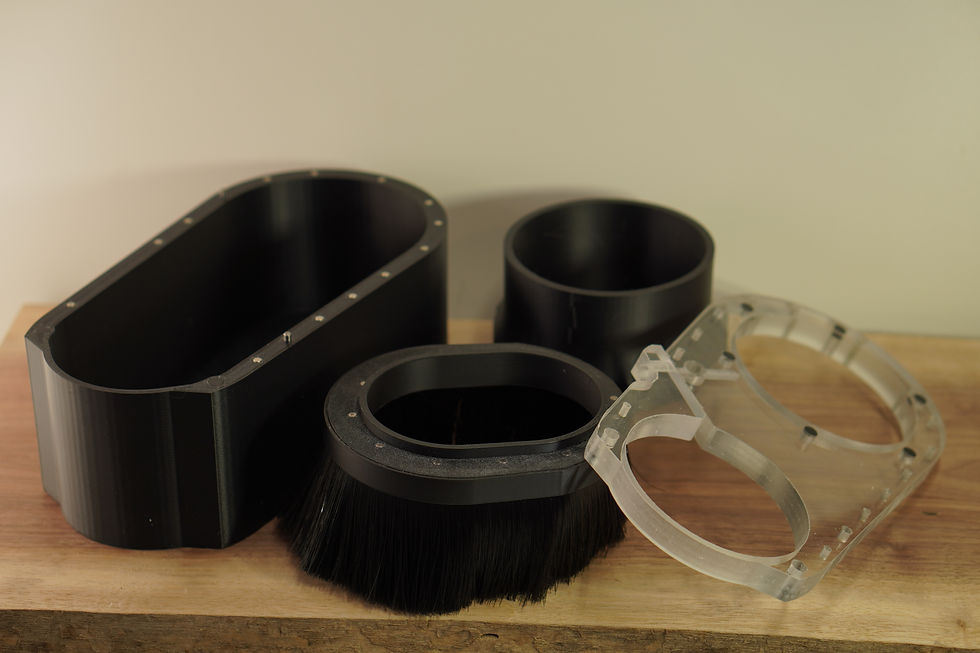

How this boot fits together

The top part of the boot fixes to your router and is tightened with a thumb screw or hex bolt. The bottom part of the boot has magnets that allow the dust boot to stay attached to your router then if you need to change bits you can just pull the bottom off change your bit and reattach the boot without having to take the top off. The hose port is also magnetic which allows you to remove your hose without detaching it. The brushes are magnetic too, which allows you to be able to swap out brush sizes or replace the brushes due to wear and tear.

*We are only stocking black for the 80mm spindles because it takes a lot of filament to make these boots, however, if you want a different color send us a message and we will gladly print a boot in another color.*
